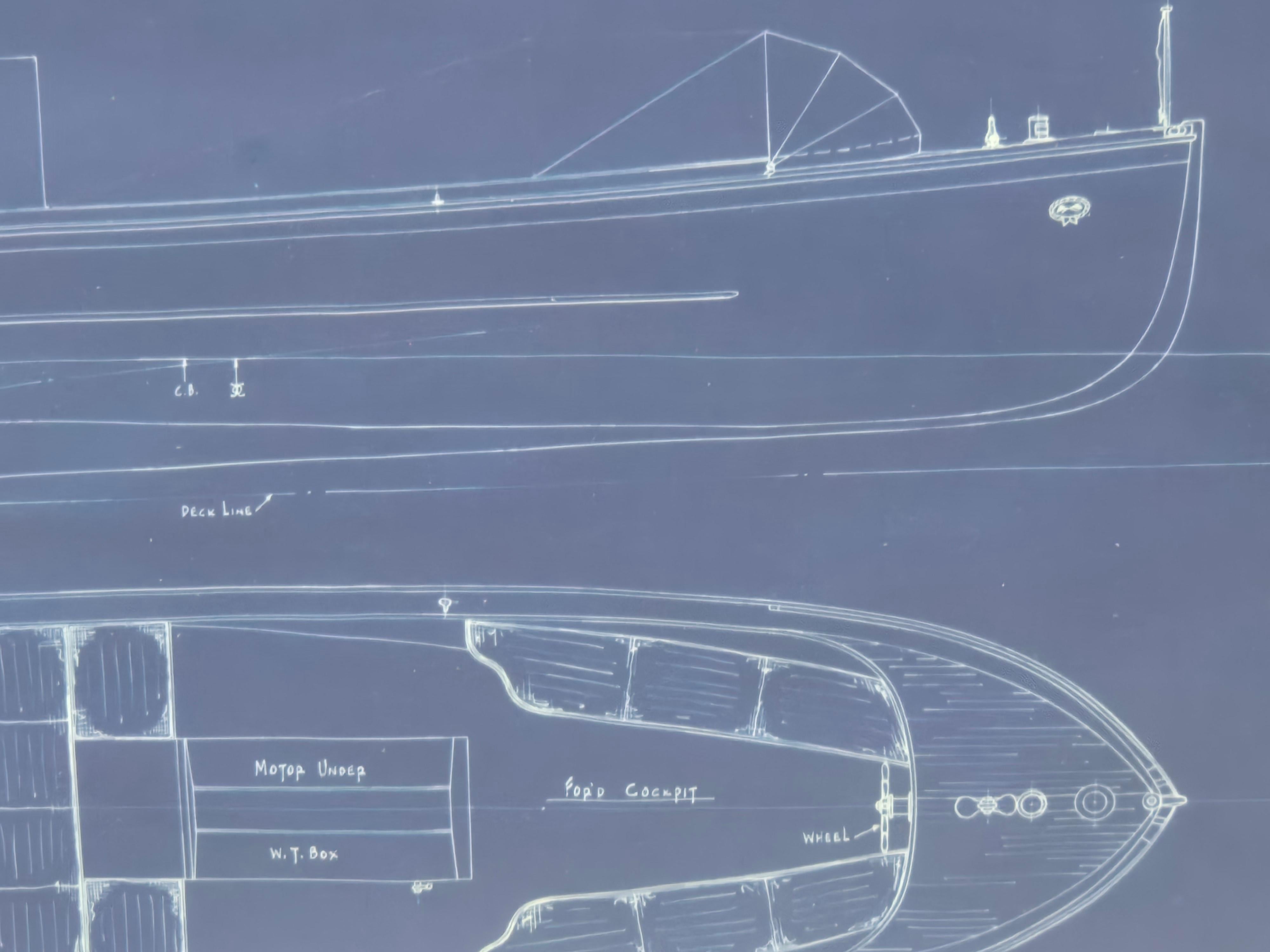

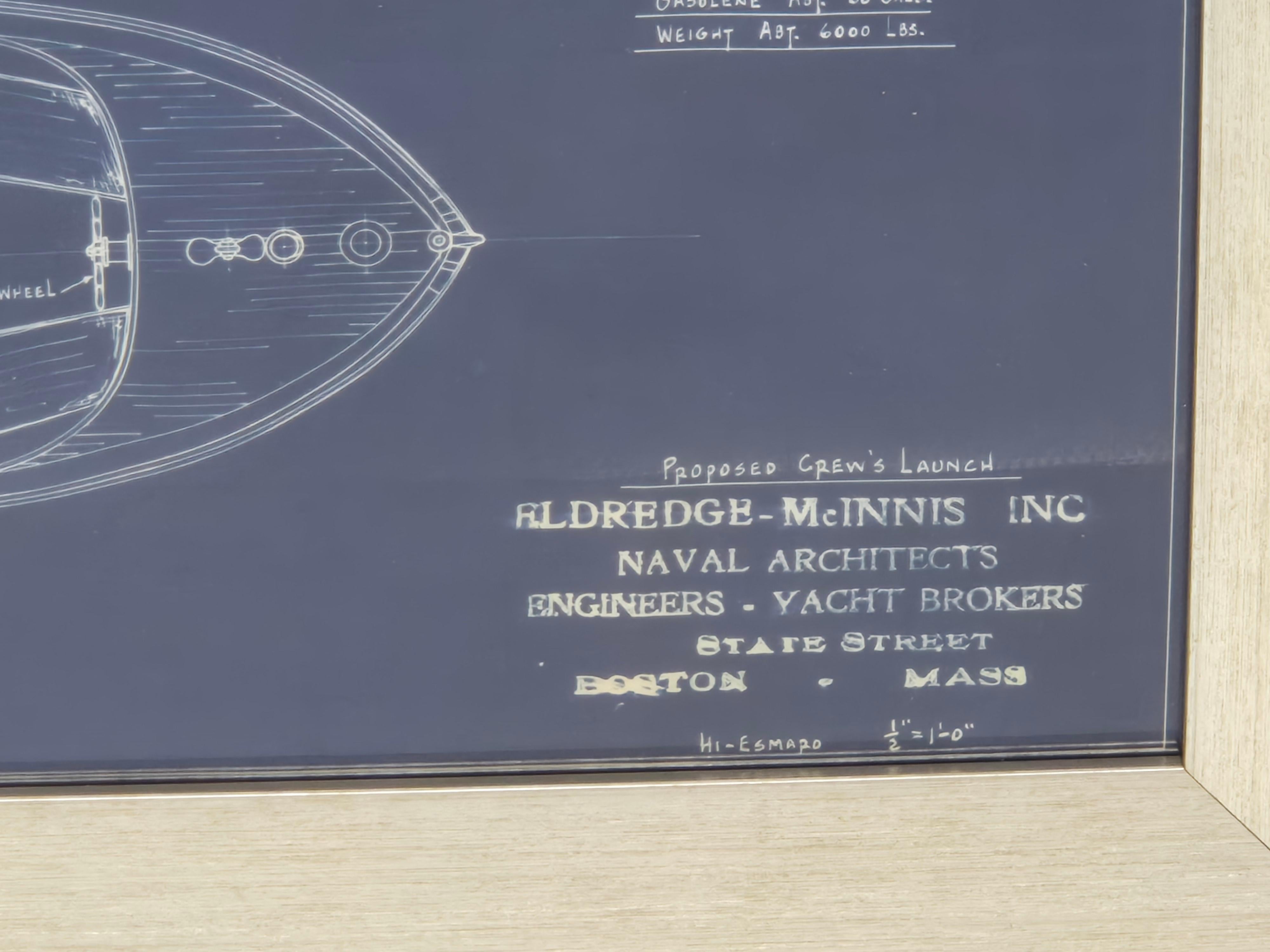

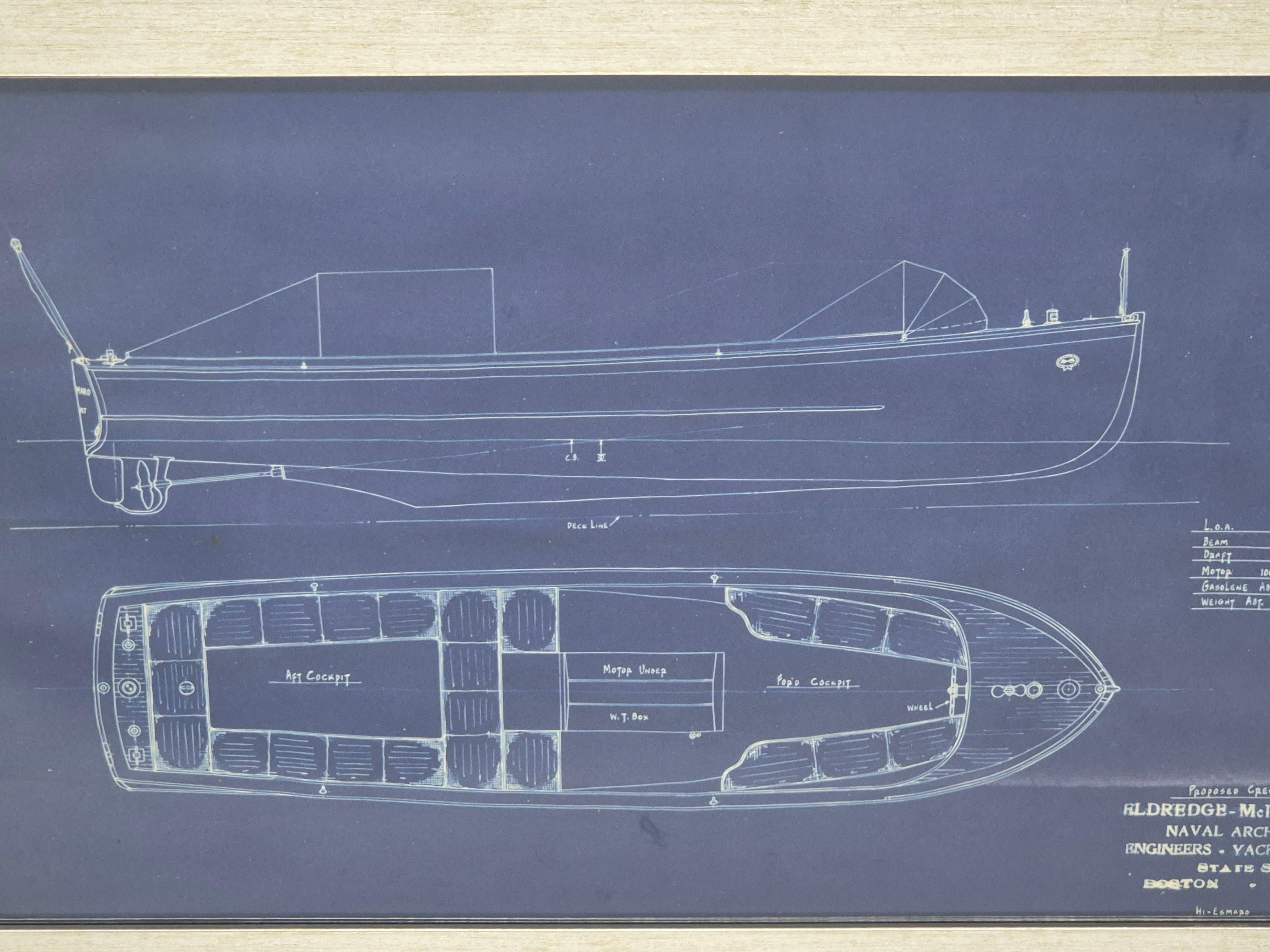

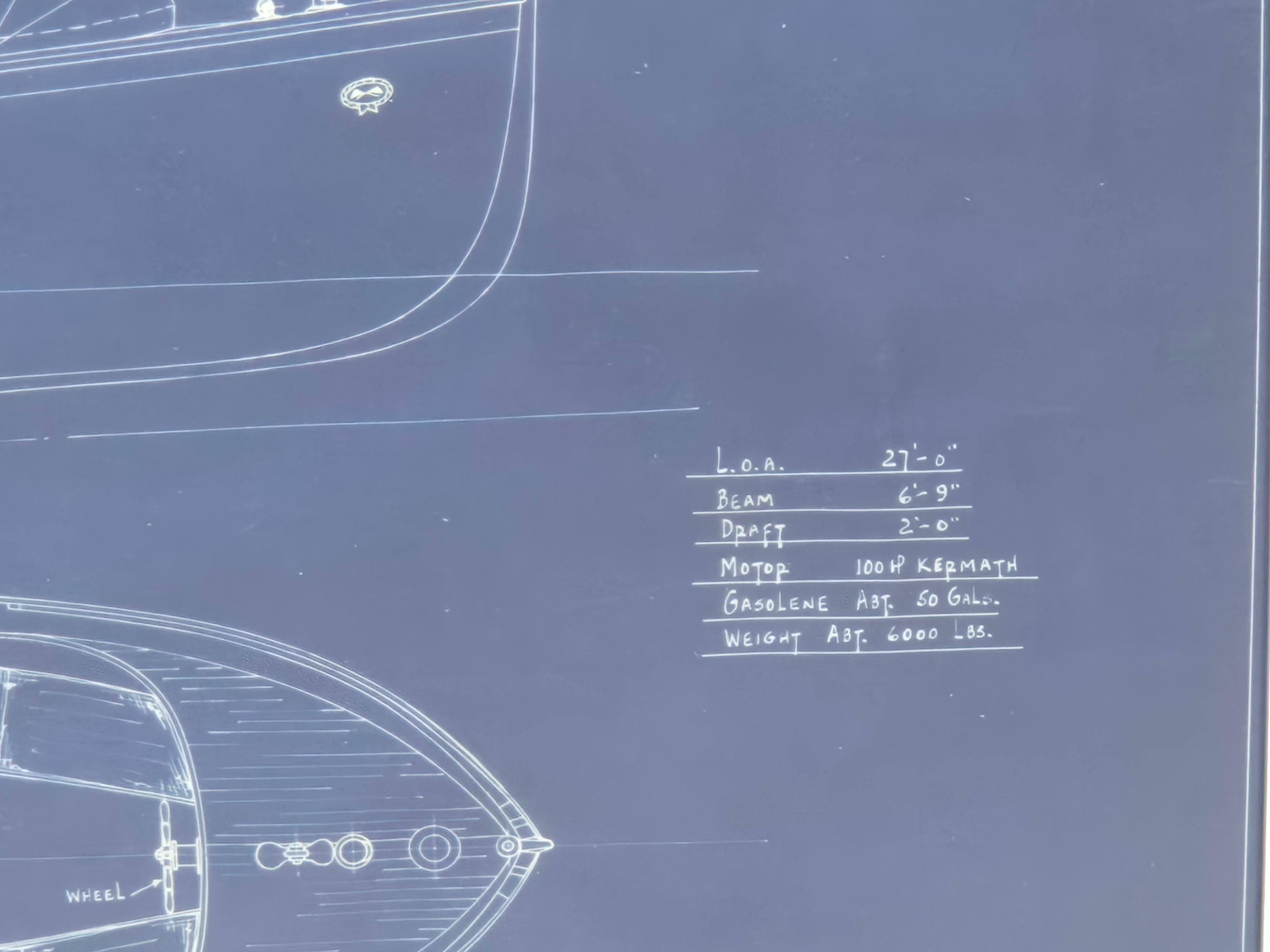

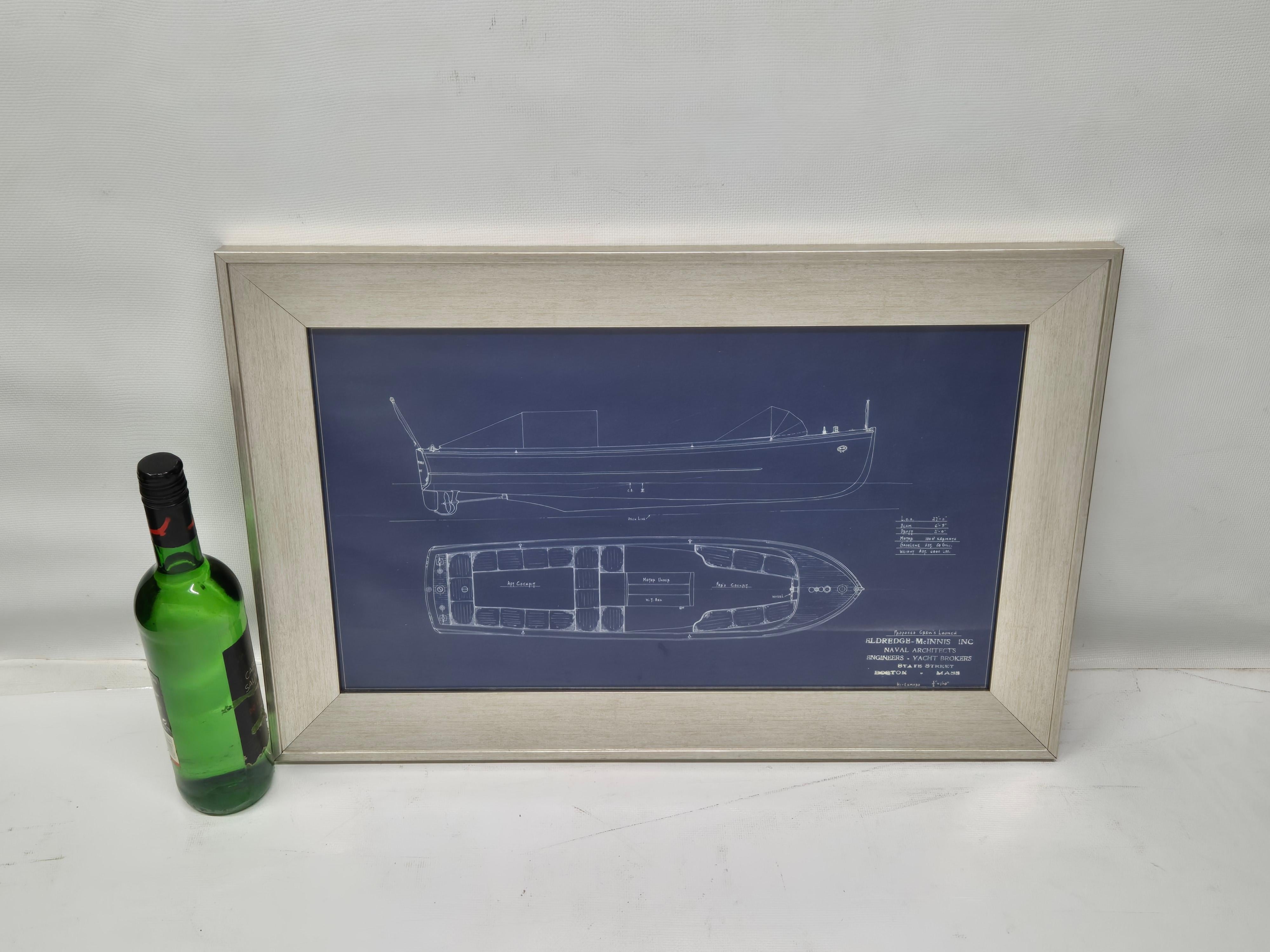

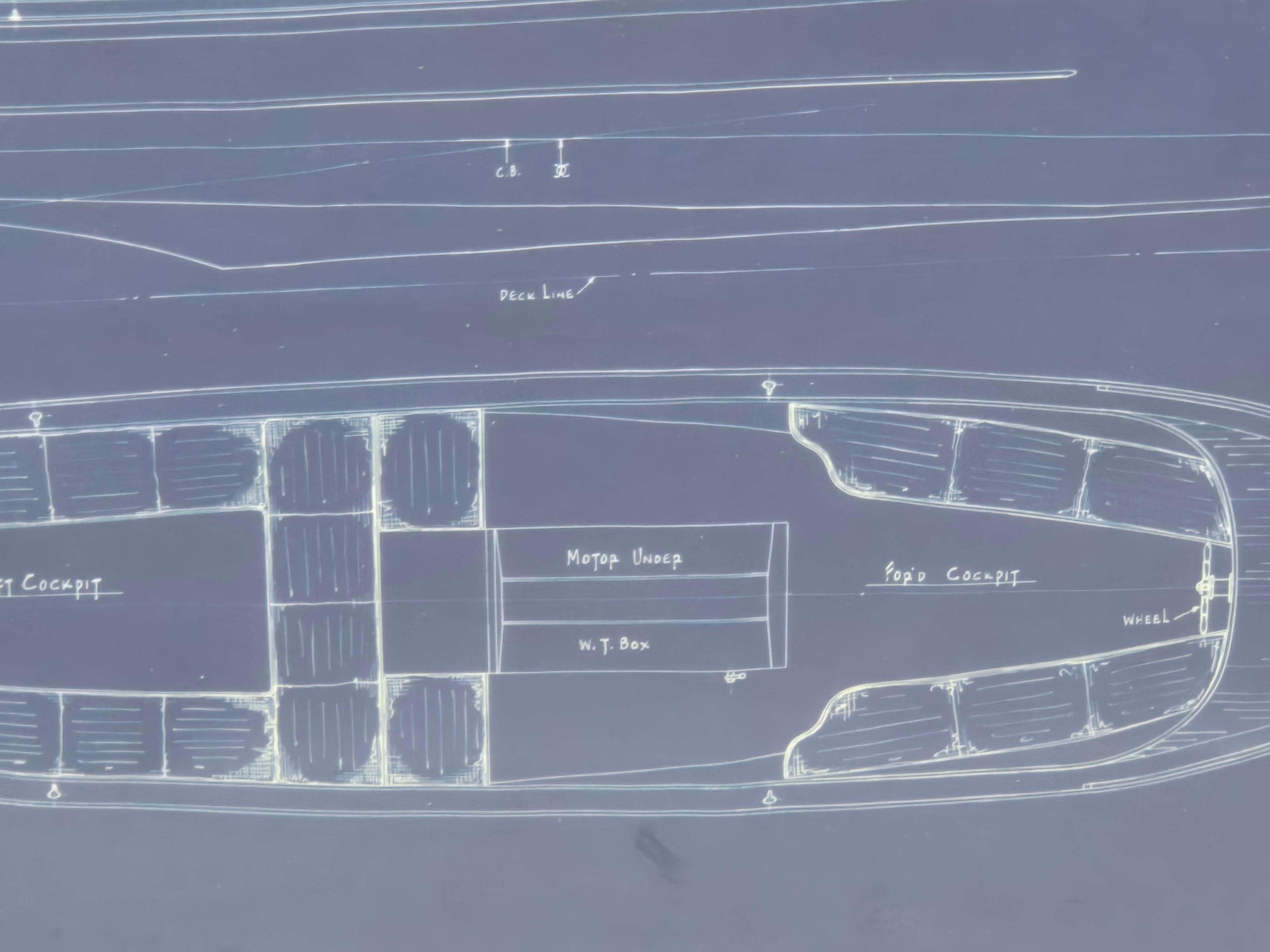

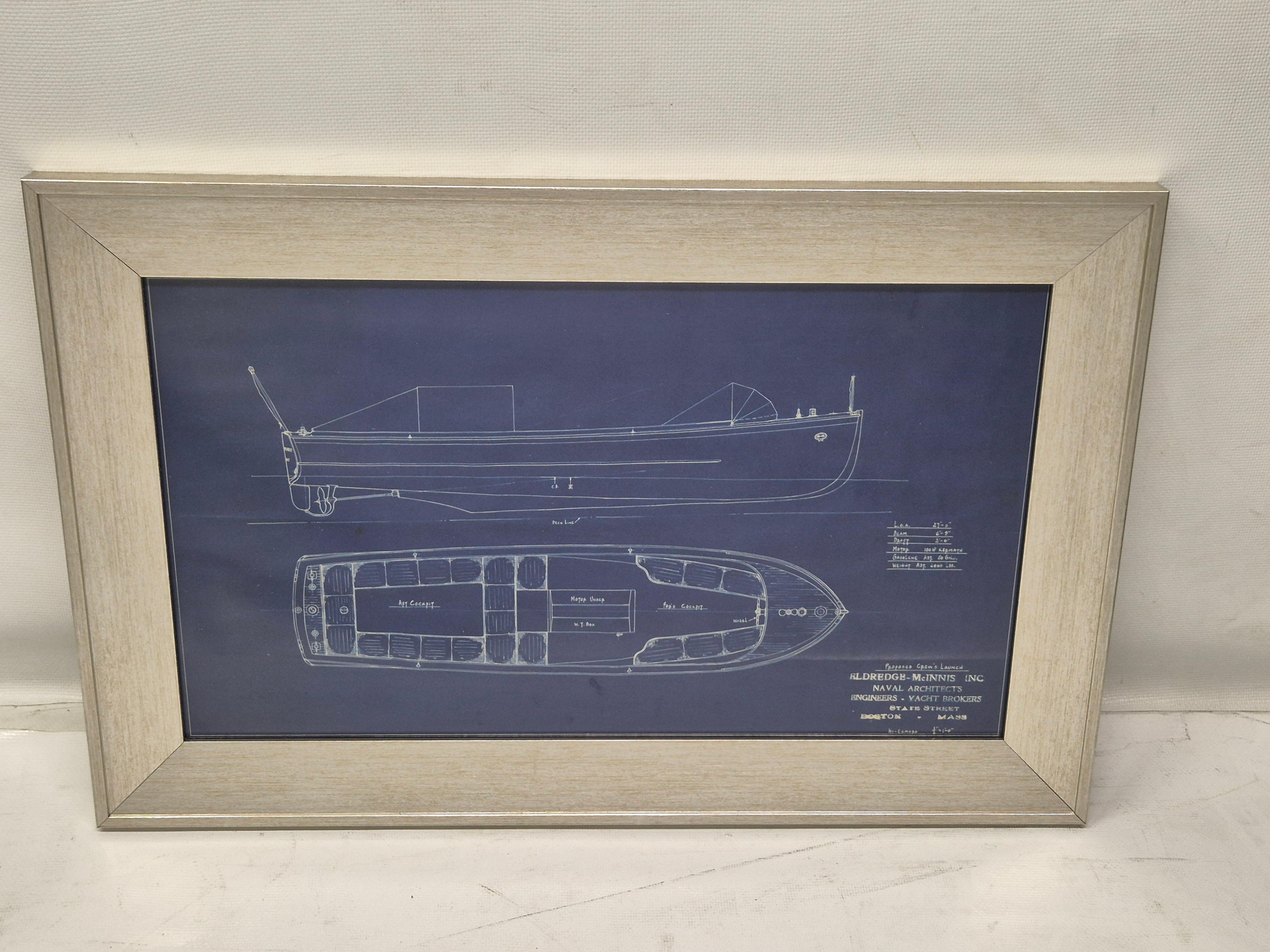

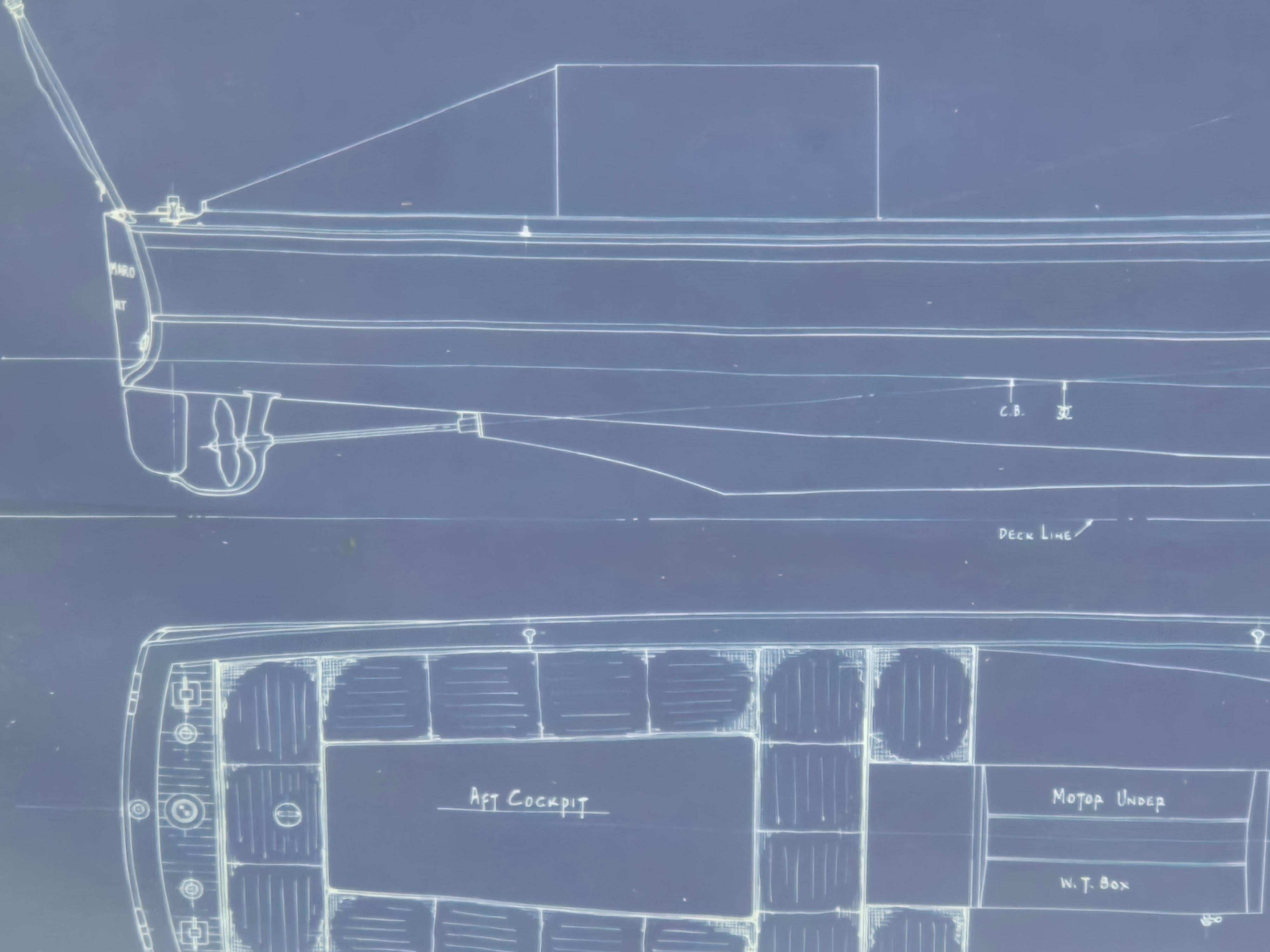

Steam yacht "Hi-Esmaro" blueprint for the crew's launch. The builder's model of Hi-Esmaro is at the Boston Museum of Science. This plan details the "Proposed Crew's Launch." LOA 27'0", Beam 6'9", Draft 2'0", Motor 100 HP Kermath, weight about 6,000 lbs. Handsome design with seating for many. The ending of the yacht name Hi-Esmaro can be seen drawn on the transom in the top sketch. This is a great original blueprint from a famous yacht. Bottom right reads Hi-esmaro, 1/2" = 1 foot. We also have a blueprint for a launch for Hi-esmaro listed here on our website.
Weight: 3 lbs.
Overall Dimensions: 16"H x 25"W
Made: America
Material: Paper
Date: 1928
- Dimensions:Height: 16 in (40.64 cm)Width: 25 in (63.5 cm)Depth: 1 in (2.54 cm)
- Materials and Techniques:
- Place of Origin:
- Period:
- Date of Manufacture:1928
- Condition:
- Seller Location:Norwell, MA
- Reference Number:Seller: F1401stDibs: LU1741245847062
